Kuat Piston Pro Review: The Easiest-Loading Bike Rack We've Tested
Pneumatic arms, zero frame contact, and a foot-pedal tilt
August 20, 2026

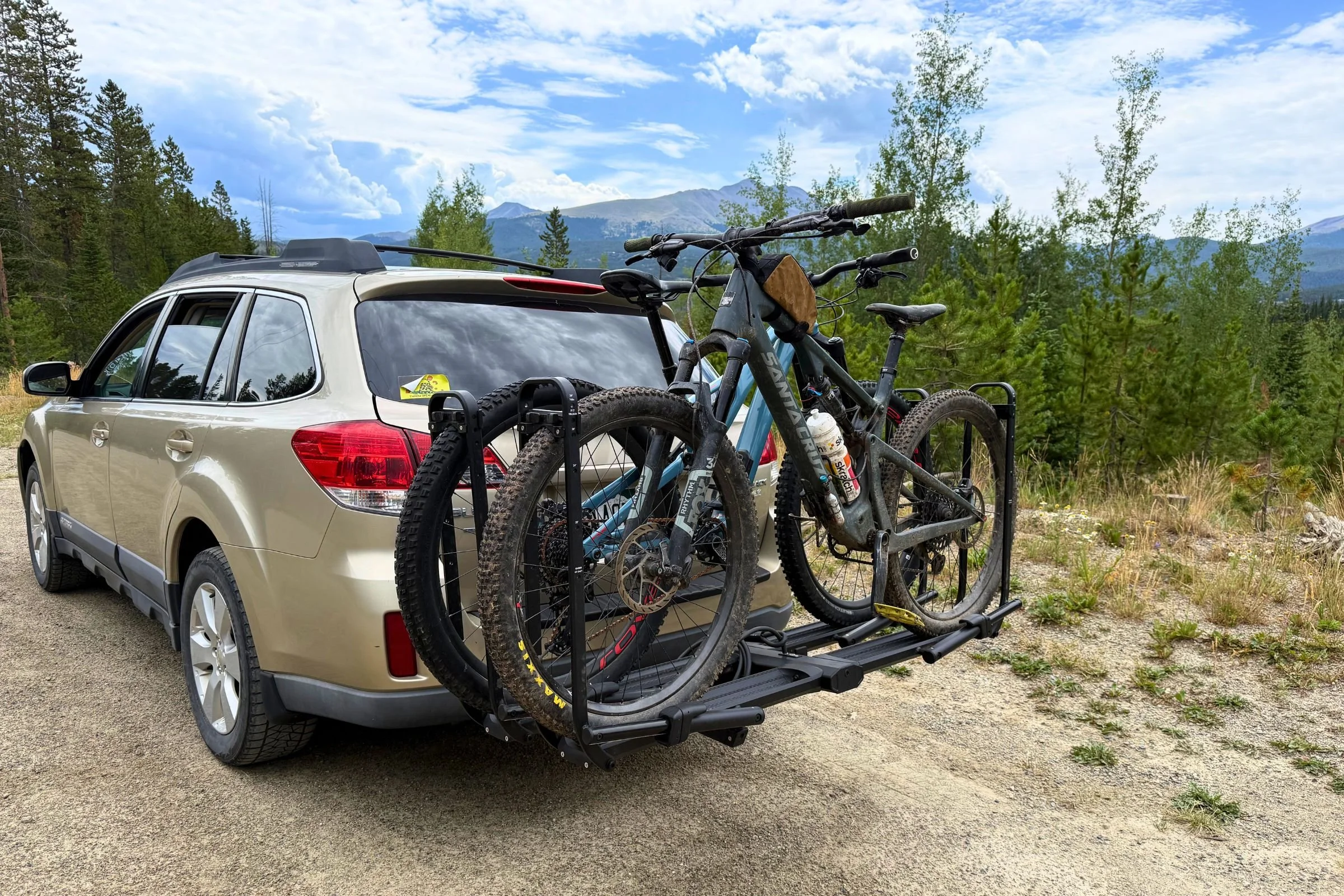

Home > Gear Reviews > Bike
Our verdict
The Kuat Piston Pro is a premium tray-style bike rack that offers easy loading and a secure, frameless contact for mounting. It is one of the slickest bike racks we’ve tested, with high-quality materials that make for a sturdy and durable build.
If you often find yourself loading and unloading bikes from trailheads to long road trips, we think this is an excellent choice. It fits a wide range of wheelbases and tire sizes, and can carry e-bikes. Plus, there’s the option to add a third and fourth tray for up to 4 bikes if you’ve got a growing family or plenty of friends to ride with.
It’s worth noting that this premium rack does come with a premium price tag. You can find racks with similar designs for nearly half the price. But compared to others, the build quality and overall ease of use of this rack stood out to us as one of the best. So, if those sorts of features are worth it to you, we think you’ll be more than happy with the Piston Pro.

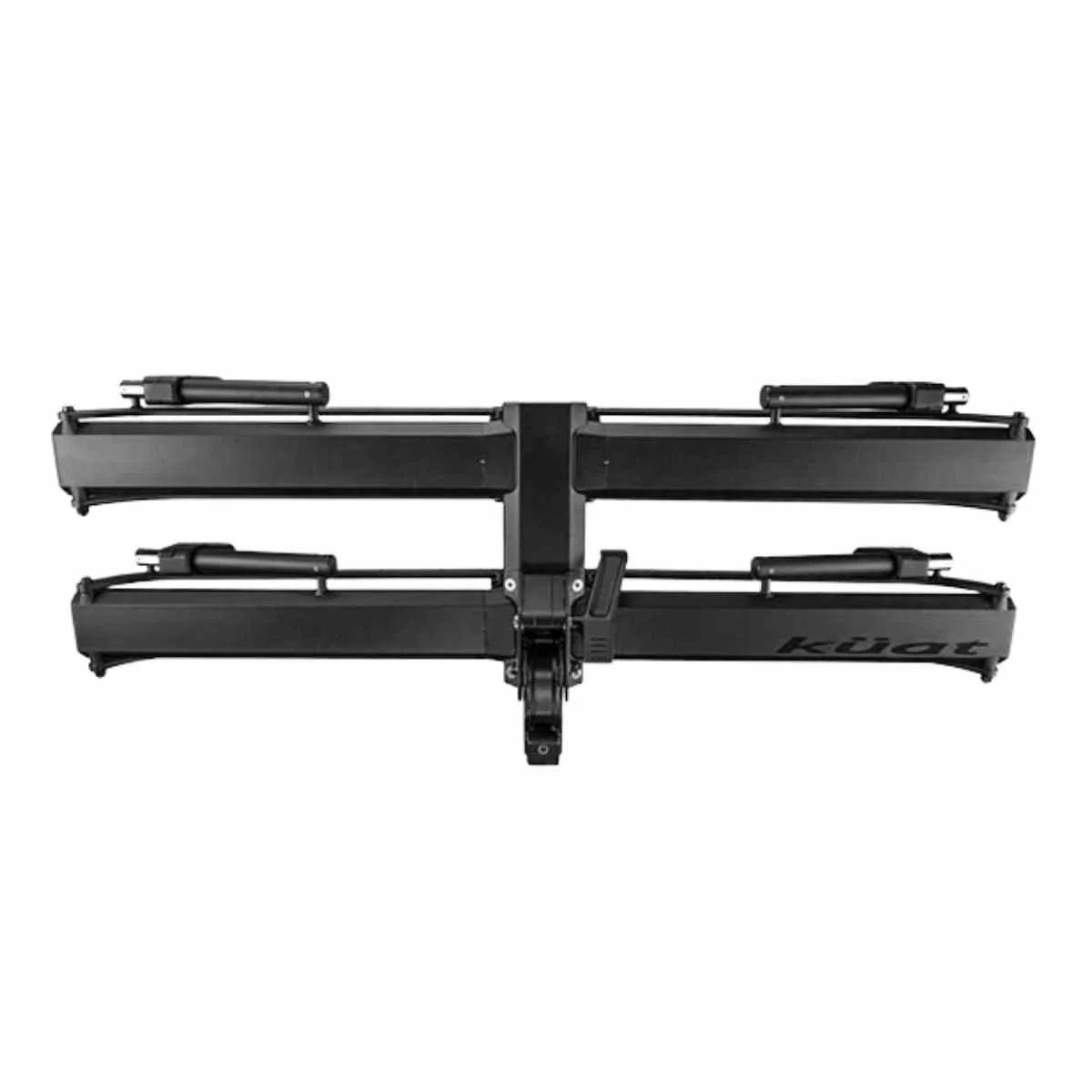

Kuat Piston Pro Hitch Bike Rack
2-bike
3-bike
4-bike
We create reader-supported, objective gear reviews independently selected by our editors. This story may contain affiliate links, which help fund our website. When you click on the links to purchase gear, we may get a commission — without costing you an extra cent. Thank you for supporting our work and mission of outdoor coverage for every body! Learn more.
Kuat Piston Pro specifications
Rack type: Hitch tray
Bike capacity: 2 (tested), 3, or 4
Hitch receiver size: 2-inch (tested), 1.25-inch
Max weight per bike: 2" hitch: 67 lbs.; 1.25" hitch: 60 lbs.
Total weight capacity: 2" hitch: 134 lbs.; 1.25" hitch: 120 lbs.
RV compatibility: 42 lbs. per tray
Mounting style: Dual cradle arms for wheels
Max wheelbase: 53" (50" for 32" wheels)
Max tire width: 5" (2.25" for 32" wheels)
Rear access: Yes
Anti-wobble system: Yes
Security: Hitch and bike lock included
Foldable when empty: Yes
Rack weight: 62 lbs. (for 2" 2-bike rack)
Folded / stowed dimensions: 59.5" wide x 25" tall
Materials: 99% metal construction (aluminum and steel)
Warranty: “No Worries Limited Warranty” (limited lifetime)
Price: $1,289
Comparison table
| Bike Rack | MSRP | Type | Hitch Receiver | Rack Weight | Capacity per Bike | Max Wheel Base | Max Tire Width | Wheel Sizes |
|---|---|---|---|---|---|---|---|---|
| Kuat Piston Pro - 2 Bike | $1,289 | Hitch tray | 1.25, 2" | 61, 62 lb | 60, 67 lb | 53" | 5" (2.25 w/ 32") | 18-32" |
| Kuat Sherpa 2.0 | $759 | Hitch tray | 1.25, 2" | 35, 32 lb | 40, 40 lb | 47" | 3" | 25-29" (20-29" w/ adapter) |
| Hollywood Racks CrossTrack - 2 Bike | $750 | Hitch tray | 1.25, 2" | 58 lb | 66 lb | 52" | 4" | 20-29" |
| 1UP USA Heavy Duty - 2 Bike | $770-825 | Hitch tray | 2, 2.5" | 46 lb | 65 lb | 54" | 3" (5" w/ spacer) | 16-29" |
Best for
Mountain bikers hauling to trailheads on rough forest roads (stability + ground clearance matter)
Road/gravel cyclists and mountain bikers with delicate carbon frames who prefer frame-free wheel mounting
Regular riders who want a durable, slick, and easy-to-use system
Families or groups needing 3–4 bike capacity with add-on expandability
SUV, van, and truck owners who need to reach a rear hatch or tailgate with bikes loaded
Buyers prioritizing security (integrated locks) for street parking or trailhead lots
Those wanting a rack that folds flat against the vehicle when not carrying bikes
What we liked
Extremely high-quality build
Durable
Very easy to load bikes on and off
No frame contact
Sturdy with no wobble on rough roads
Option to add additional bikes/trays
What could be better
Expensive
Rack itself is on the heavy side
How we tested

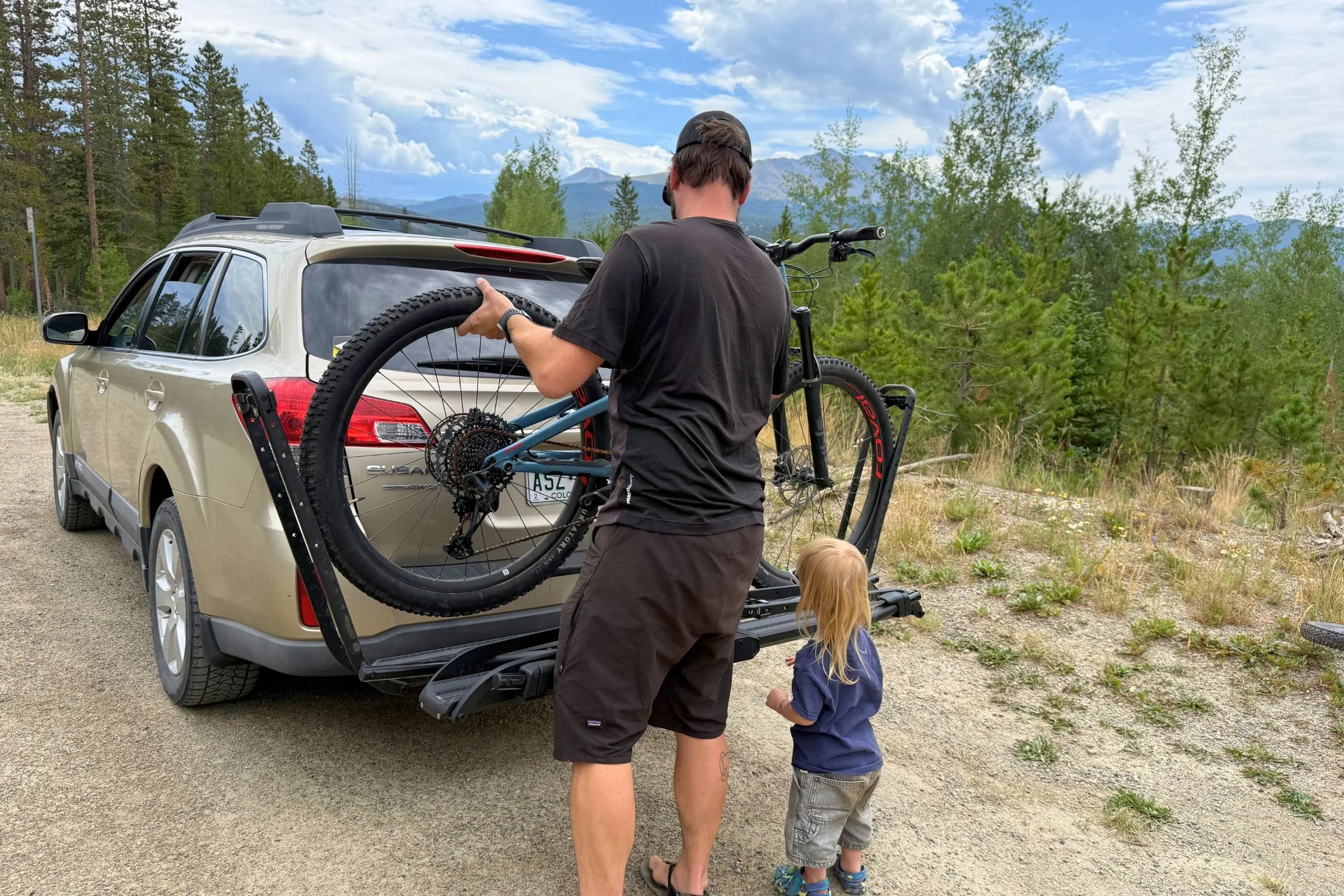

Loading bikes onto the Kuat Piston Pro is easy, even with a toddler trying to distract you!
We spent several weeks testing the Kuat Piston Pro driving to trailheads around the mountains of Colorado. We often drove up rough forest roads with the rack loaded with two bikes to test for stability, security, and overall performance. We had both short and tall testers unload and load bikes, and even our smallest testers had an easy time loading bikes onto this rack. We primarily tested this rack with two full suspension mountain bikes (weighing around 30 pounds each). But we also placed gravel bikes and commuter bikes on the rack to test different wheel and tire sizes.
At trailheads, we tested the overall usefulness of the rack, including how easy it is to access the rear of the vehicle, and how easy it is to raise and lower the rack itself into different positions, both with and without bikes on it. We also tested the lock system when driving into town for post-ride libations. And before all that, we necessarily tested the installation and ease of setup straight out of the box. After weeks of consistent use on our tester’s vehicle, we’ve also gotten an idea of overall durability and quality.
It’s also worth noting: One of our primary testers is a mechanic with solid knowledge of all the moving parts on a rack like this. He assessed the smoothness, quality, and durability of parts like the pistons, hitch attachment, and anti-wobble mechanisms.
Will the Kuat Piston Pro fit your setup?
The following checklist will help you avoid frustration and unnecessary returns by ensuring the Piston Pro will work with your current vehicle and bike setup.
Your vehicle
2” or 1.25” hitch for mounting (2” is the most common, but be sure to double check)
2” and 1.25” both work with cars, trucks, SUVs, vans, and flat-towed vehicles
2” also works with travel trailers, motorhomes, and fifth-wheels (with lowered weight capacity)
1.25” does NOT work with travel trailers, motorhomes, or fifth-wheels
2” receiver necessary for chassis-mount on RVs
RV mounting limits bikes to 42 lbs. per bike
Rack may obstruct view in some backup cameras
Your bikes
Wheel size no larger than 32” and no smaller than 18”
Wheel base of 53” or less (50” or less for 32” tires)
No frame shape or design limitations since this is a frameless contact mounting system
Max tire width of 5”
Each bike weighs 67 lbs. or less
E-bikes
67 lbs. or less for 2” hitch 2-bike tray
60 lbs. or less for 1.25” hitch
Loading ramp available separately
Capacity growth
3-bike tray limits max weight per bike to 50 lbs.
4-bike tray limits max weight per bike to 40 lbs.
3- and 4-bike options only available for 2” receiver
Performance in the field

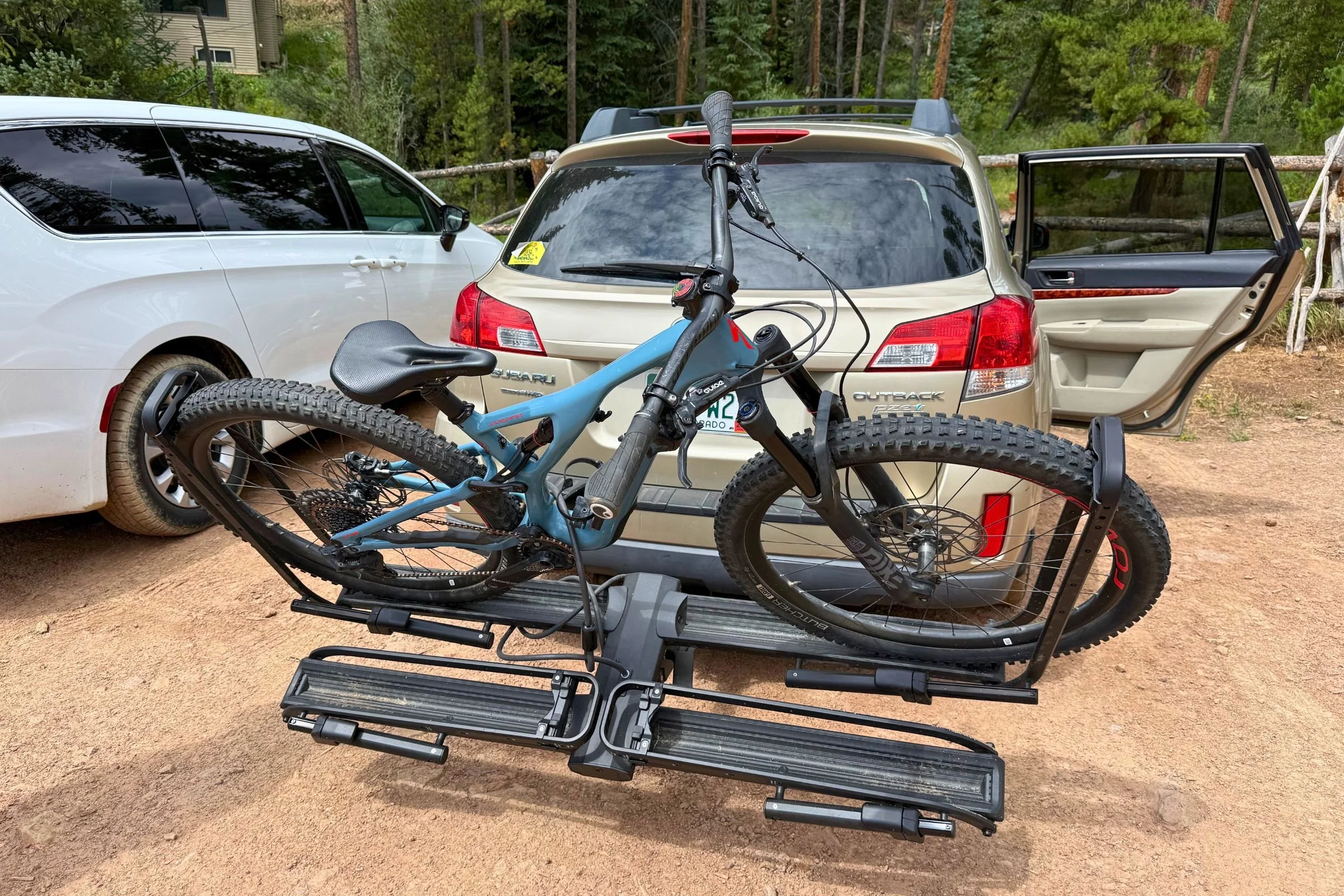

The Kuat Piston Pro tilts away when loaded or unloaded to allow easy rear-vehicle access.
Loading ease
We tested the loading ease with multiple testers, including tall and short ones, and both had an easy time loading and unloading bikes—even our 5’3” very pregnant tester was able to easily load and unload her bike. We primarily tested the rack with two full suspension mountain bikes, one weighing in at over 30 pounds. We also tested with lighter gravel bikes, and as we expected, those were even easier to load thanks to their lighter weight.
One of the features that makes this rack so easy to load and unload is Kuat’s OneTap levers, which release the pistons instantly and allow the cradle arms to automatically land in place.
Bike security and stability
The Piston Pro is an incredibly stable rack. Even compared to some premium options from other reputable brands, this rack's stability on rough roads stood out as excellent. Even on rough dirt roads around Summit County, Colorado, the rack didn’t budge and we never once worried about bike stability. The same was true on highways at high speeds with high winds.
Rear-vehicle access

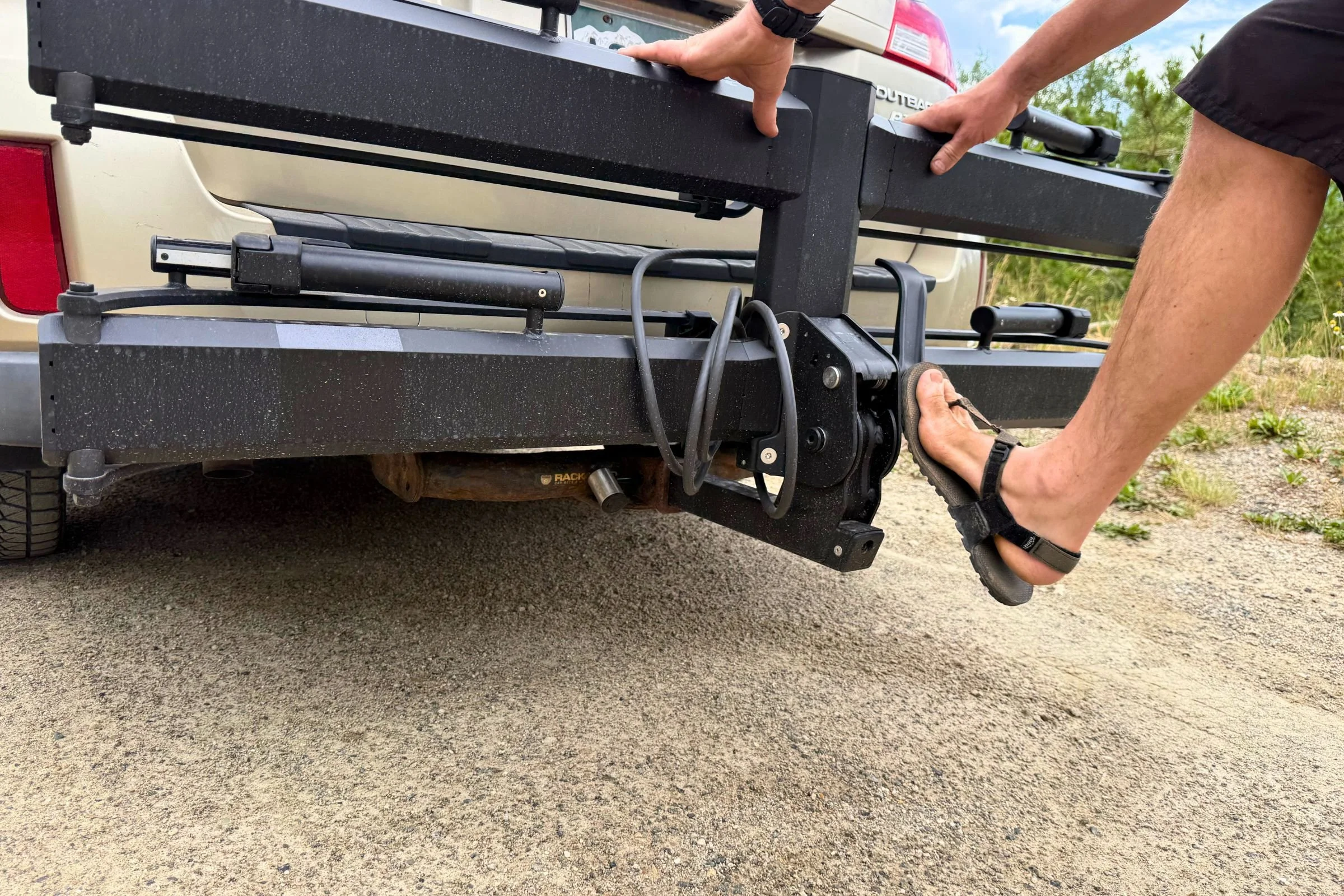

The Kuat Piston Pro has a foot pedal that engages easily to adjust the tilt of the rack.
We tested the Piston Pro on a mid-sized hatchback SUV, and with the tilt mechanism, it was fairly easy to access the back of the vehicle, even with the bikes on it. With no bikes on, it is very easy to access anything from the back, even items stowed deep in there. The rack also tilts low enough for use with a truck with a tailgate.
Kuat uses their own patented Pedal Pivot that you can use with your foot or hand to easily tilt the rack. We found this feature to work very well and were seamlessly able to adjust the rack with a quick tap of one foot.
Bike-fit versatility
The Piston Pro fits a very wide range of bikes, including kids’ bikes with tires as small as 18”. It can also accommodate tires up to 32”. We primarily tested with one 27.5” mountain bike and one 29” mountain bike, and both bikes fit very securely. Smaller gravel bikes with thinner tires also fit securely on this rack with no issue.
E-bike capability
This rack is capable of carrying all sorts of e-bikes, so long as they weigh less than 67 pounds. We did not specifically test with e-bikes, but given the stability of this rack, we think it’s an excellent option, especially for folks with e-MTBs.
Build quality
Straight out of the box, one of the features we were most impressed with is the build quality. This is a very sturdy rack with well-built pistons that function very well. The materials are solid. The rack is on the heavier side, but it more than makes up for that weight with its build quality and overall durability.
Installation & hitch fit
The Piston Pro came mostly set up out of the box and took at most 30 minutes to set up on a car and be ready for use—notably easier than other racks we’ve assembled. While this rack is on the heavy side, our male tester had no issues setting it up entirely on his own. This was pain free to assemble, and we also appreciate that there was no plastic packaging. The rack immediately fit very securely upon assembly.

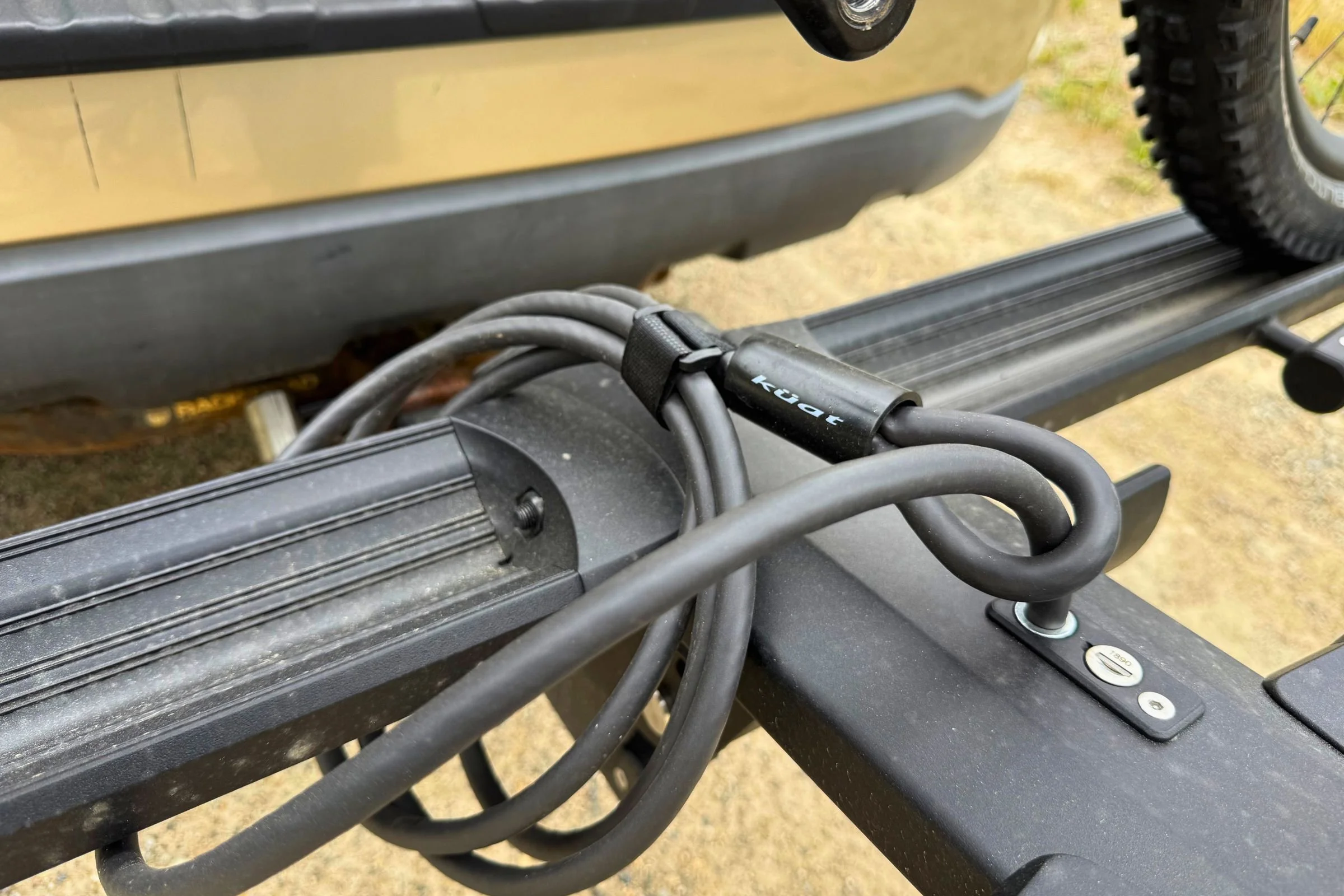

Cable bike lock
The Piston Pro comes with a cable lock that secures the bikes to the rack. It is easy to use and as secure as any other cable lock (you could add a more robust lock for high-risk areas if needed).

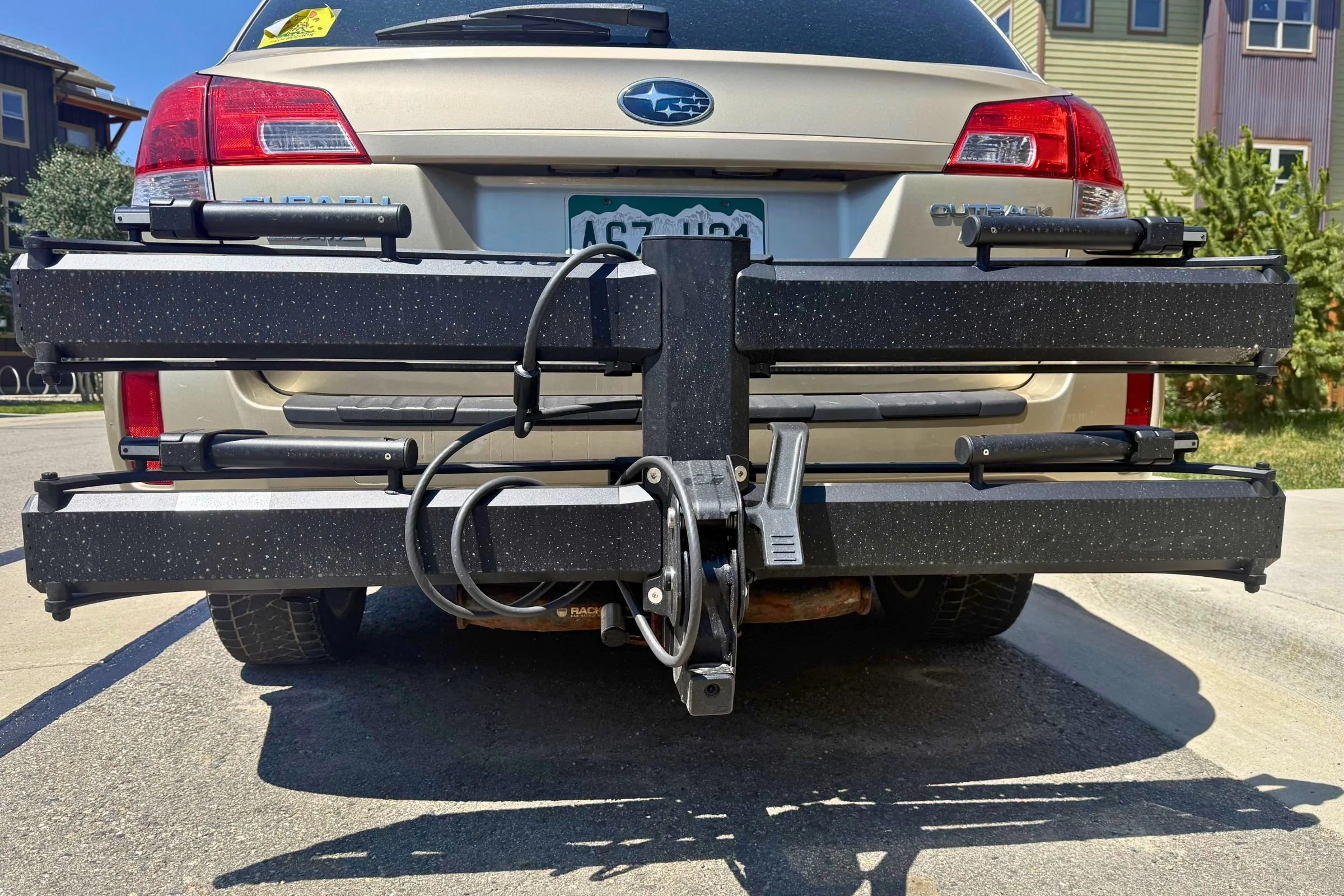

Stowed footprint
The Piston Pro stores upright and flat against the back of the car when not holding bikes. It protrudes a few inches but maintains a fairly minimal profile.
Features
Loading and bike hold

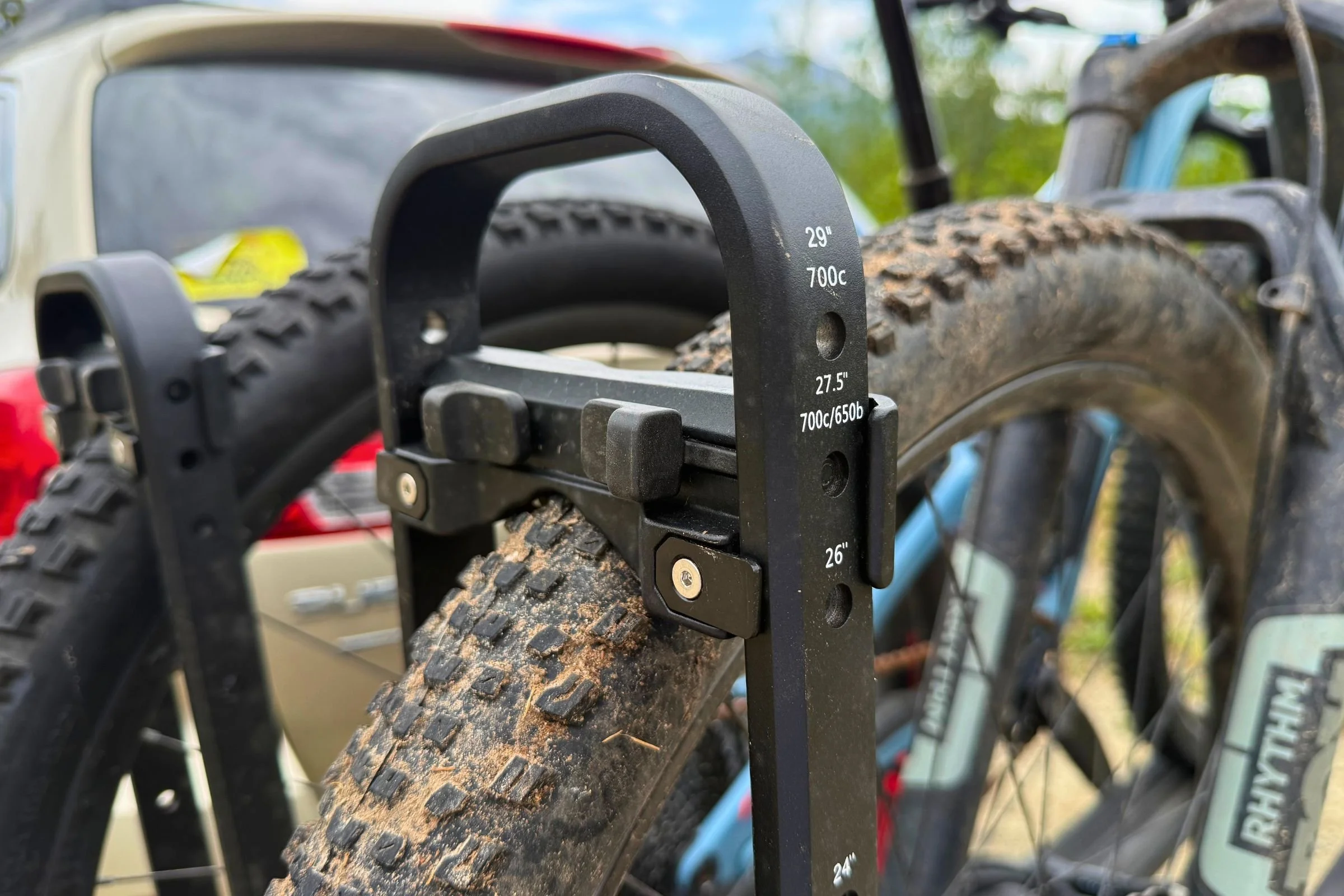

Frame-free tire/wheel clamping avoids contact with the frame—safe for carbon and unusual frame shapes

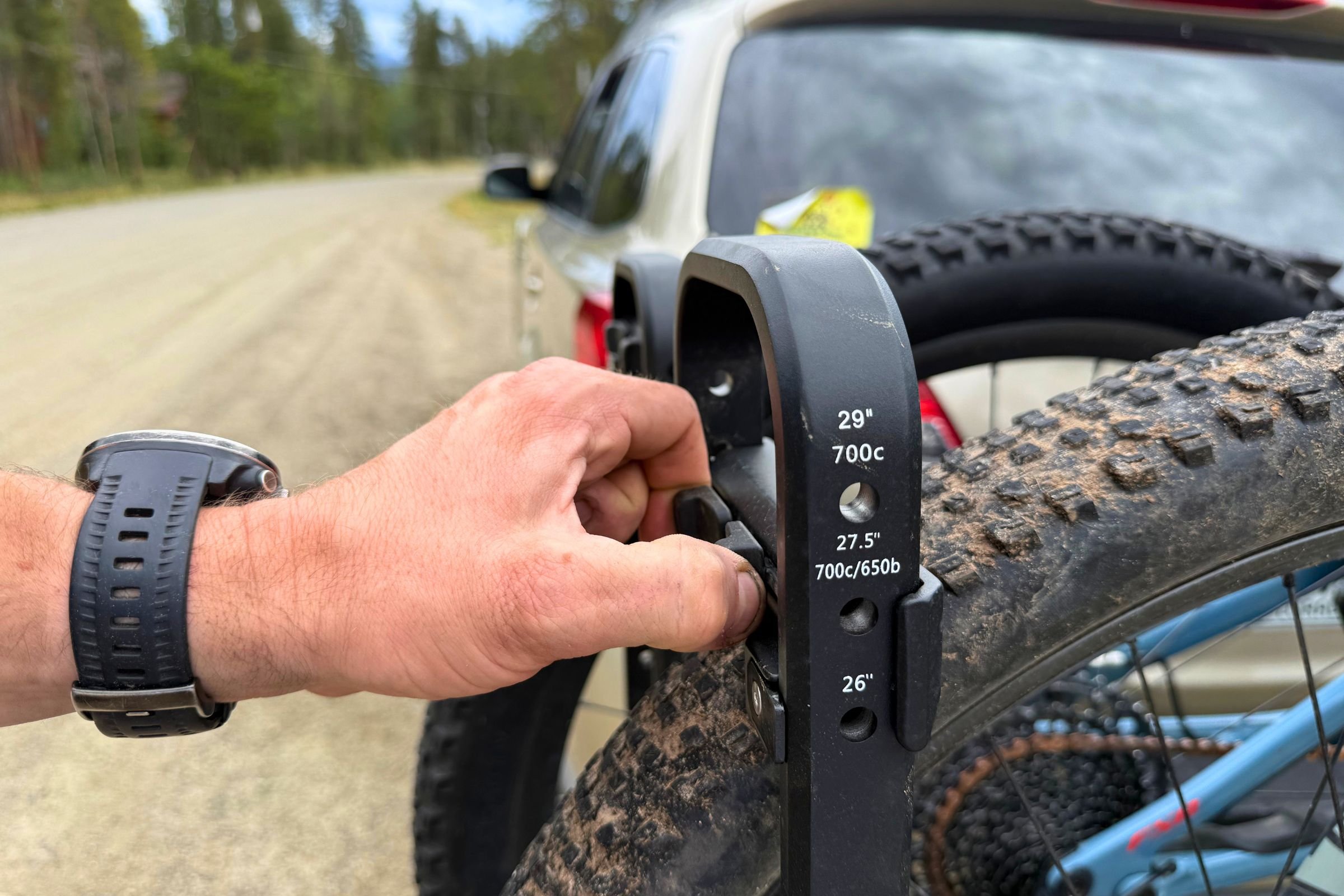

FastFit adjustable cradle arms easily accommodate a wide tire-width and wheel-size range, no tools required
Patented OneTap system automatically releases arms into position for easy loading and unloading
Low load height reduces the lift for heavy e-bikes
Loading ramp available separately for heavy e-bikes

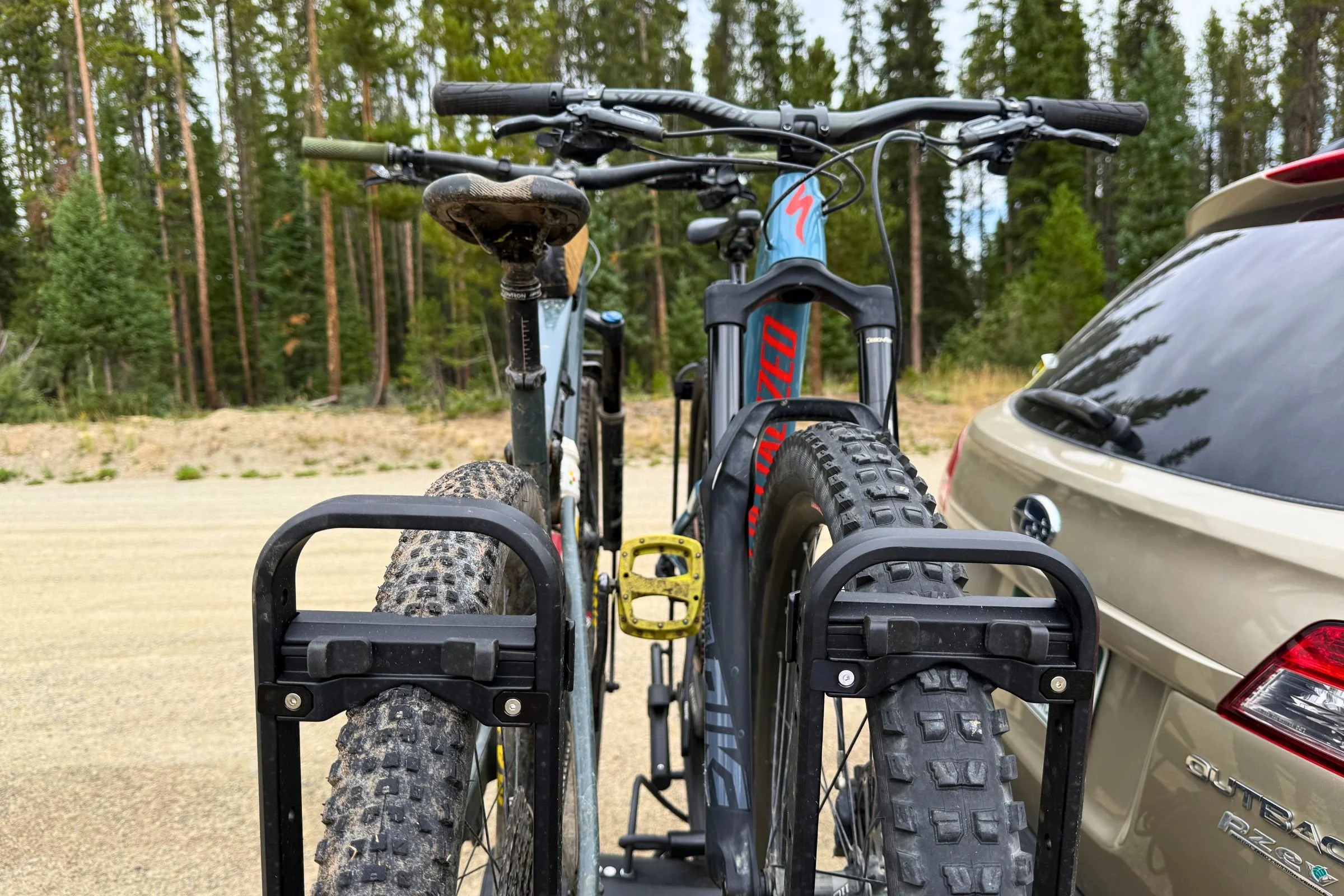

Tiered trays to minimize handlebar and pedal interference
Rear-vehicle access
Foot-pedal tilt drops the rack to reach the hatch/tailgate—works loaded
Tilt returns and locks positively so the rack doesn't flop in transit
Stability and hitch attachment

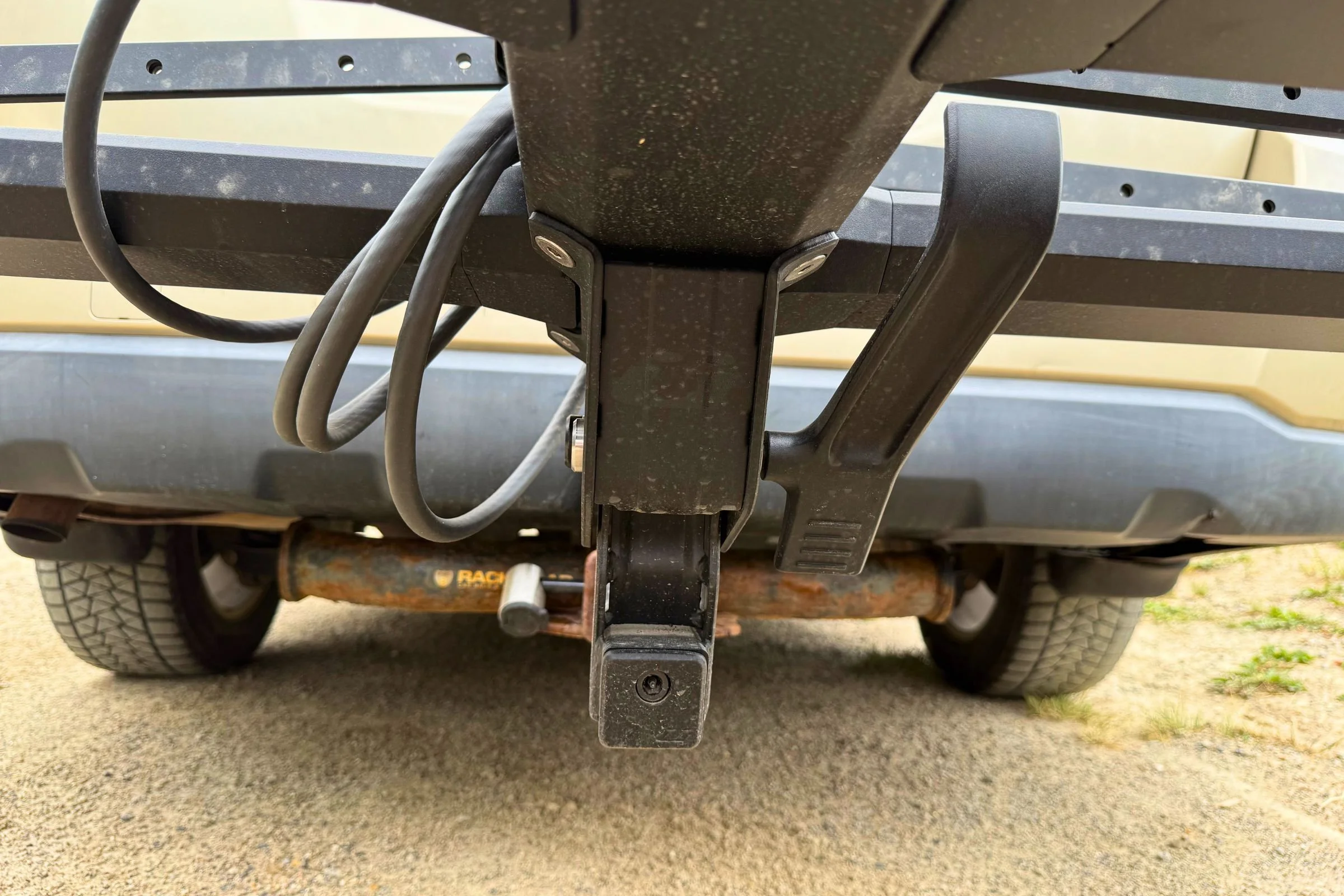

The threaded expander sits tight inside the receiver to stabilize the rack.
Threaded expander in hitch for anti-wobble system that eliminates play in the receiver
Tool-free tightening from a single hand knob or lever
Rigid platform keeps bikes from swaying on rough roads
Security
Integrated locking hitch pin secures the rack to the vehicle
Cable lock secures each bike to the rack
Keyed-alike system across locks for convenience
Build and stowability
Folds flat to shrink its footprint when not in use
99% metal (aluminum and steel) construction balances weight, strength, and corrosion resistance
Folds upright/flat against the vehicle to reduce footprint when empty
Add-on module expands capacity from 2 to 3 or 4 bikes
Setup and maintenance
Mostly assembled out of the box; 30-minute setup to road-ready
Serviceable moving parts and available replacement hardware
Finish resists chipping and road grime; simple to clean
Sustainability
Kuat uses no plastic packaging for their bike racks. The brand has sustainability initiatives in their code of conduct. They also have partnered with multiple organizations to plant trees around the country through their Future Forest Initiative.
FAQ
-
Yes, the Piston Pro has the option for a 1.25” hitch receiver. Using the rack with the 1.25” hitch means there is a max of 2 bikes on the rack with a max weight of 60 pounds per bike. The 1.25 hitch is only compatible with standard cars, vans, trucks, and SUVs (not RVs, trailers, or fifth-wheels).
-
Yes, the Piston Pro 2” 2-bike rack can carry e-bikes up to 67 pounds each when mounted on a standard car, truck, SUV, or van. This weight limit changes to a lower limit if you’re using the smaller hitch or mounting on an RV, or if you have more than 2 trays/bikes on the rack.
-
No, the Piston Pro has frameless contact points that only touch the tires, so it will not damage any bike frame, carbon or otherwise. This is an excellent rack to choose if you have nice bikes and are worried about keeping the frames intact because there is no frame contact.
-
Yes, you can access the back of your vehicle with the Piston Pro rack. It tilts downward to allow access to both hatchback vehicles and trucks with tailgates. This is not a swing-away rack.
-
Yes, the Piston Pro can fit most any frame shape or type, as long as its wheels and wheelbase are within the rack's range. It fits wheels between 18”-32”, has a max wheelbase of 53”, and tires as wide as 5". Note that with 32" wheels, the max wheelbase is 50" and the max tire width is 2.25".
-
Yes, the Piston Pro can expand to 3 or 4 bikes with the 2” hitch version. The 1.25” hitch is only available with two trays.
Should you buy the Kuat Piston Pro?
Buy if: You want a stable, durable, well-built rack that’s easy to load and has frameless contact points for a variety of bike sizes, including e-bikes. This is a premium option that is ideal for folks who plan to get a lot of use out of their rack and may often travel on rough roads where stability is a high priority.
Skip if: You’re on a budget and don’t want to spend a premium on your rack, or if you want a very light bike rack.
Where to buy the Kuat Piston Pro?
The Kuat Piston Pro Hitch Bike Rack is a popular gear item, so you have options when it comes to retailers. Here are some of the pros of the retailers.
Amazon
Pros: Free 2-day shipping with Amazon Prime membership (can be same-day delivery in major metropolitan cities)
Backcountry
Pros: Frequent sales for Expedition Perks members (free to join), fast shipping, Gearhead chat customer service is excellent
evo
Pros: 365 day returns, store locations in ski towns for easy last-minute pick-up, may offer rentals if you want to try before you buy, earn 10% back in Rewards, free membership gets discounts on services and rentals
Advice on where to buy
In general for gear, we recommend purchasing from a place with easy or free returns.
Similar bike racks
Kuat Piston Pro vs. Kuat Sherpa 2.0
Rack type: Hitch tray
Bike capacity: 2
Hitch receiver size: 2” or 1.25”
Max weight per bike: 40 lbs.
Total weight capacity: 80 lbs.

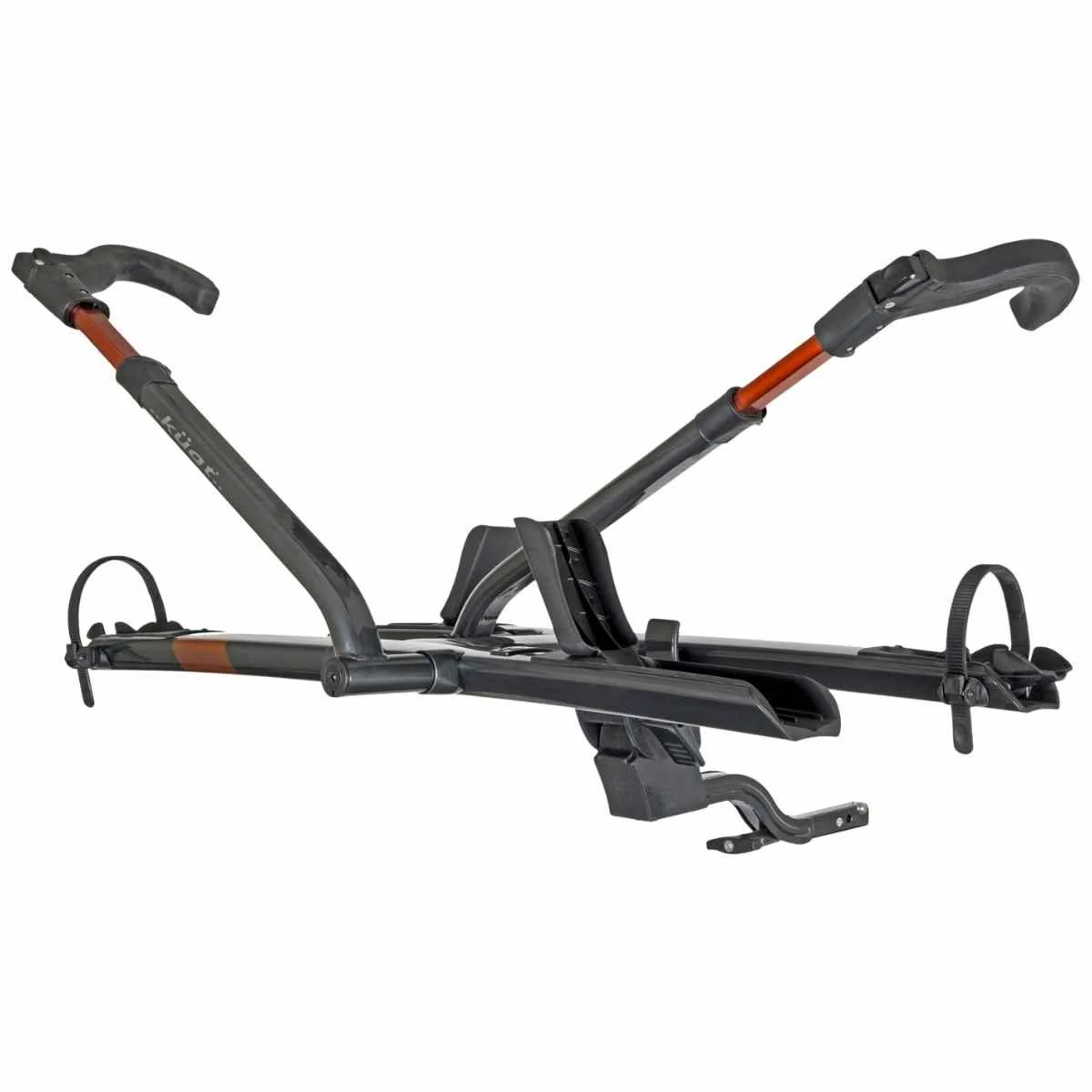

The Kuat Sherpa 2.0 is one of Kuat’s most popular bike racks, and for good reason. It’s a solid, user-friendly option that is much more affordable than more premium racks like the Piston Pro.
The Sherpa uses a ratcheting cane arm for the front wheel and a ratchet strap for the rear wheel to secure the bike—still a frameless contact system, but not quite as slick or easy to use as the piston-powered dual cradle arm system on the Piston Pro. This rack also has a lower max weight capacity than the Piston Pro.
If you want the most stable and easy-to-use option and don’t mind the price tag, we think the Piston Pro is a top-notch rack. But if you’d like to spend about half the price for a rack that still has an excellent build quality but that may be a little more finicky to load, the Sherpa is a tried-and-true rack for a reason.
Kuat Sherpa 2.0
Kuat Piston Pro vs. Hollywood Racks CrossTrack
Rack type: Hitch tray
Bike capacity: 1 or 2 (tested)
Hitch receiver size: 2” (tested) or 1.25”
Max weight per bike: 66 lbs.
Total weight capacity: 132 lbs.

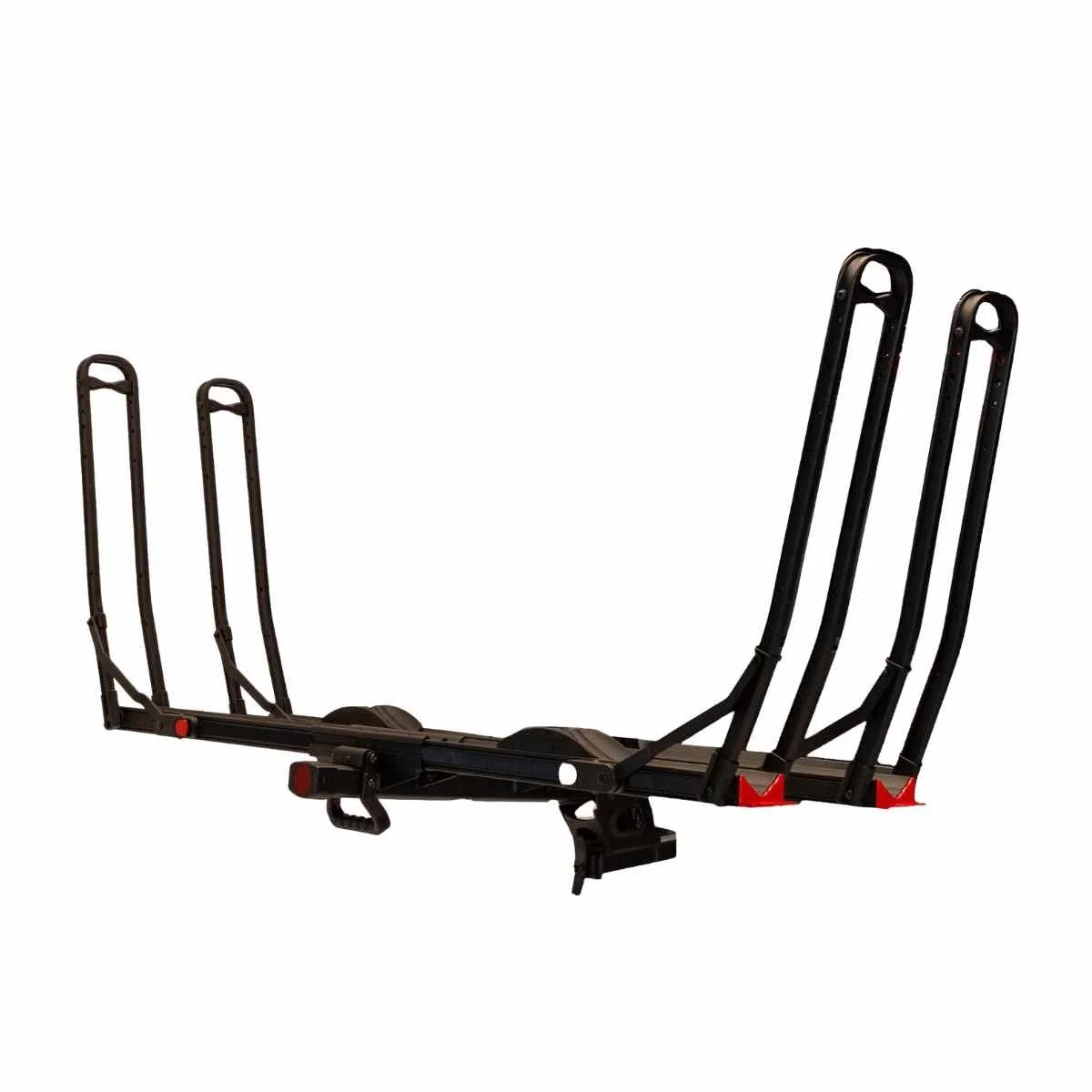

The Hollywood Racks CrossTrack has a very similar design overall to the Kuat Piston Pro, with frameless contact via the cradle arms. The cradle arms are adjustable for different wheel sizes—from 20” to 29” and up to 4” in tire width (which is a slightly smaller range than the Piston Pro).
The biggest difference between these two racks is that while the Kuat Piston Pro uses piston-powered pneumatic arms, the Crosstrack uses a traditional ratcheting system on the cradle arms, which requires more manual adjustment.
Both have an anti-wobble system that’s solid, but we think that the overall materials and build quality of the Kuat is much higher. But, for nearly half the price, we think the CrossTrack is an excellent rack choice for riders on a budget who like this slick style of rack.
Hollywood Racks CrossTrack
Kuat Piston Pro vs. 1UP USA Heavy Duty
Rack type: Hitch tray
Bike capacity: Available as 1 or 2 bike base, with option to add additional 2 trays for up to 4 bikes total
Hitch receiver size: 2” and 2.5”
Max weight per bike: 65 lbs.
Total weight capacity: 130 lbs.

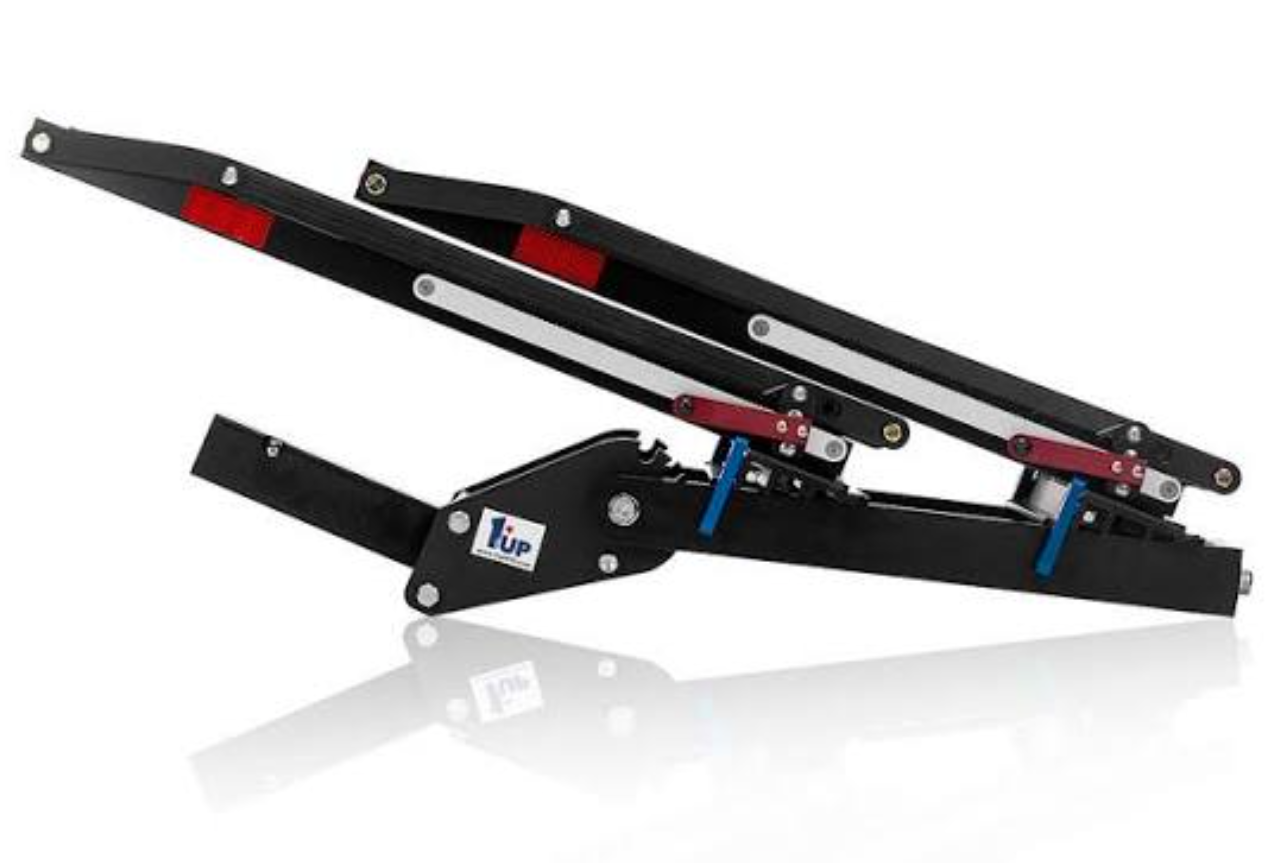

The 1UP USA Heavy Duty is another popular bike rack with a similar design to the Piston Pro. The cradle arms make for a slick, no frame contact system that secures the bike well. The Heavy Duty is made mostly of aluminum, which makes it lighter than the Piston Pro. And the Heavy Duty is also much less expensive than the Piston Pro. That price difference is largely because, like the Hollywood Racks system, the 1UP Heavy Duty also ratchets rather than using pistons.
The Heavy Duty has a similar range of sizes it can accommodate, but on the smaller end, allowing 16”-29” tires, compared to the Piston Pro’s 18”-32” option.
If you’re looking for a lighter and more affordable rack that is also sturdy and easy to load, this is an excellent option to consider.
1UP USA Heavy Duty
Why you should trust us / About the author
A true mountain dweller, Stasia feels far more at home on a high alpine ridge than on a busy city street. She’s worked as a backpacking guide in Southeast Alaska, has held a WFR, AIARE 1, AIARE 2, and Avalanche Rescue Certifications and is working to become an avalanche education instructor. She’s now a full-time writer and editor in the outdoor space and has been testing and writing about gear for over a decade.
Stasia learned to mountain bike as a kid in Utah, and rekindled her love for the sport after moving to Summit County, Colorado and getting a new (and very much improved from her very old hand-me-down) full suspension bike several years ago. She spends most of her summer days out on the singletrack, and while she often has the privilege of biking right from her house, she and her family love a good road trip or romp down a rough dirt road with bikes in tow. So, she spends a lot of time loading bikes on and off of racks to travel for vacations and bike races around the Mountain West—often keeping an eye on the side view mirror to make sure the bikes are secure when 4-wheel-drive really kicks in.
